BASIC HAND PRESS

The manually operated hand tool can be used individually as a pressing device, or to be adapted for punching by equipping it with a die set.

The die set can be provided from our standard range, or to be customized upon a request and according to the perforated material.

Regularly, a die set consists of a cutter (“male”) and a die (“female”). The “male” part mounts on the vertical main shaft (ram) in one of two possible options mentioned below –

Configuration 1:                          Configuration 2:

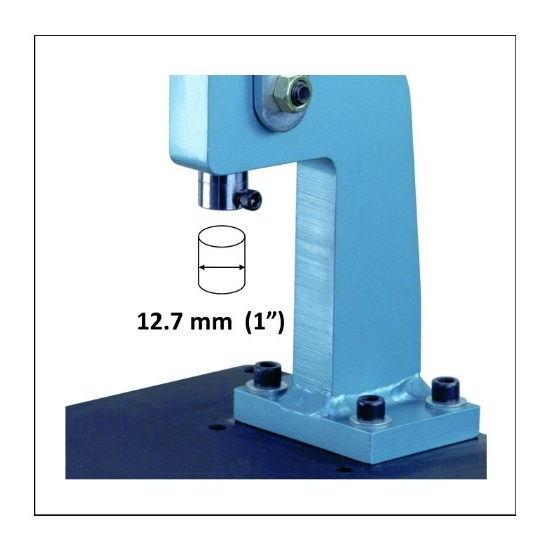

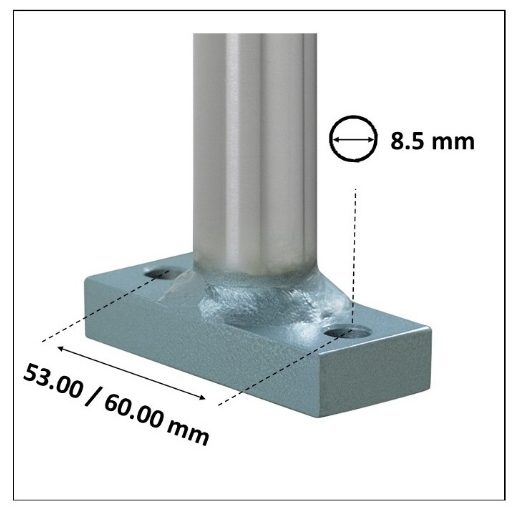

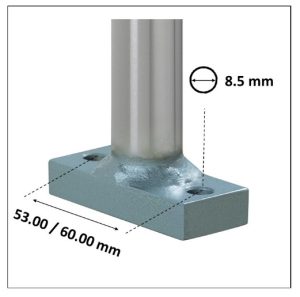

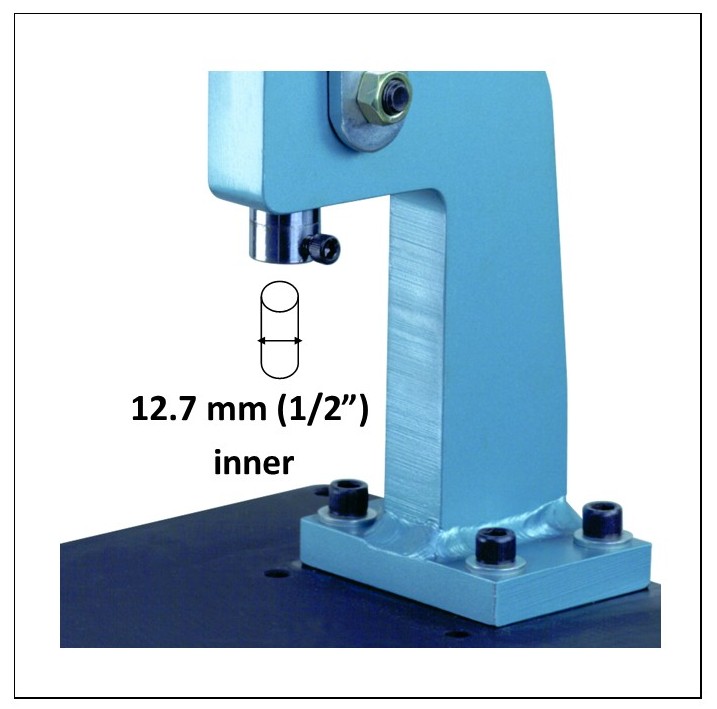

The device fits into a                   The device is attached
hollow inside the ram,                 with bolts to a welded plate.
secured in place by
means of a set screw.



Optional:

  • Length stops can be installed according to the desired measured lengths

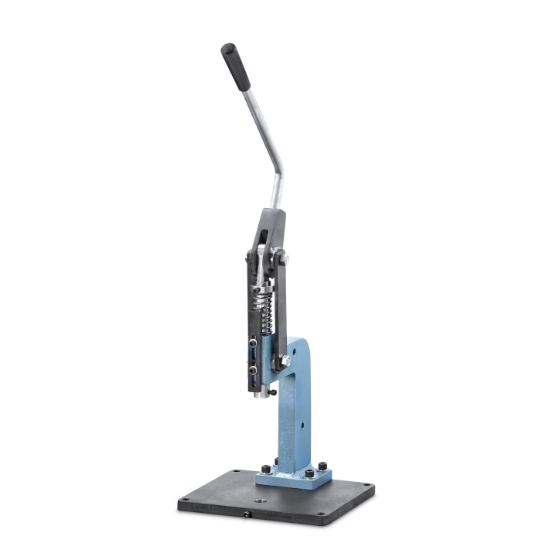

  • Spring retracting handle, returning to its initial position after each stroke
  • Mechanical stop to limit travel
  • Throat Depth / Punch Height / Punching Stroke can be chosen according to customer’s request

USE / BENEFITS

For industrial purposes, such as: perforating, shearing, joining and riveting

In Steel, Aluminum, PVC / Vinyl or Soft Metals

Can also be utilized for:

  • Mechanical and electrical applications
  • Jewelry fitting
  • Process of light materials (paper, textile, wood)
